This project kicked off in 2017. It involved the designing of two slat conveyors for pressed part and stacking skid transfer. The design of a turn over fixture which would flip the pressed part over for the opposite variant. It also included various robot bases and support steel work. Also included the design of all […]
Press line Automation Read More »
This station consists of two opposing tilt stations. The tilt station consists of a roller conveyor with a custom designed body and skid clamping mechanism. This arrangement is tilted using a single arm scissor lift. The objective of the station is to remove unwanted wax from the vehicle bodies.
Tilting Vehicle Body Wax Removal Station Read More »
This machine measures the internal machined faces of the differential internal casing to within 0.02mm, using hi-tech measuring probes.
Differential Gauging Facility Read More »
A highly technically challenging design completed by BMD. This machine serves a multitude of tests along with the inclusion of component insertion. The exact process remains highly confidential. The machine comprises of a multitude of moving axis, each moving at various intervals.
Differential Push / Pull Torque Tests with Spur Gear Insertion Read More »
We developed full structural steel development to engineers specifications. This included connections etc and finally manufacturing drawings.
Structural Steel Building Development Read More »
This project kept us quite busy at the end of 2016. We had to design a new belt and modular belt conveyor of which there were 28 independent versions thereof. Also included was a spiral conveyor designed to accommodate the end user requirements in the tyre industry.
Conveyors and Spiral Conveyor Read More »

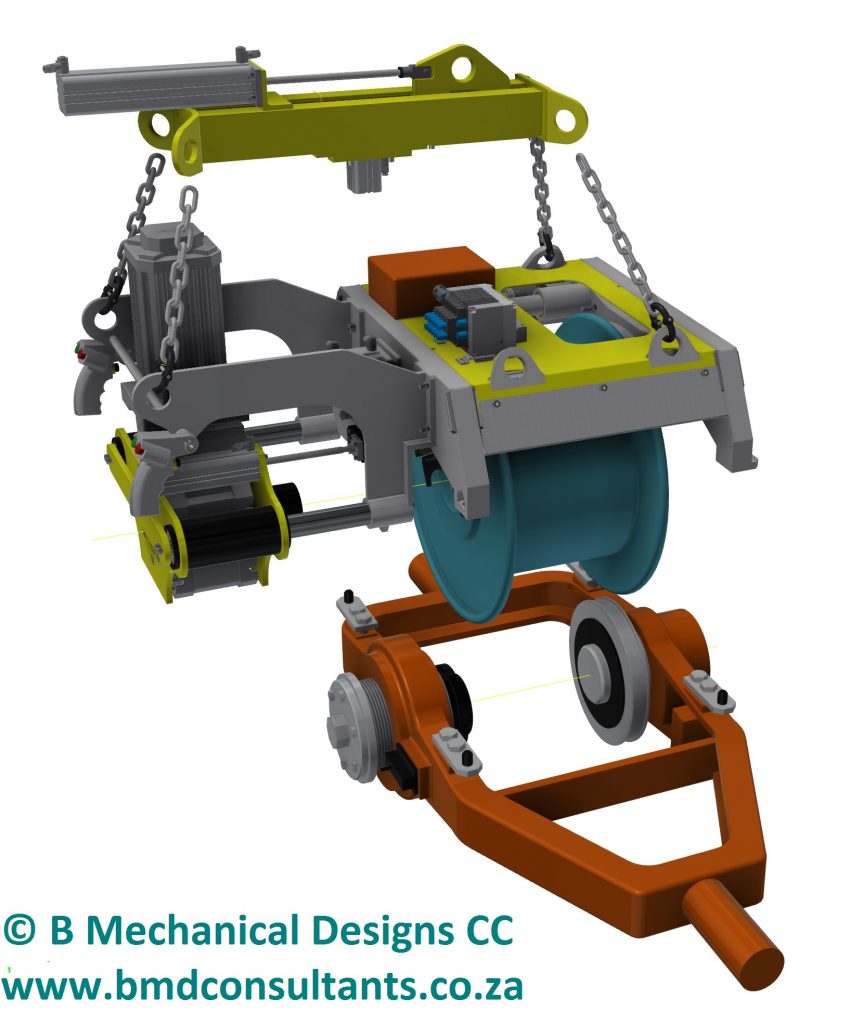

Something from the past. We designed this bobbin loader / unloader in 2008. It’s function is to remove the empty bobbins or load full bobbins into the wire winding machines. The center of gravity manipulator switches the suspension point depending on the load. This means that the unit can carry an empty, loaded or no
Bobbin Gripper, from the 2008 archive Read More »
From B Mechanical Designs, we wish all our clients and followers a successful
Best wishes for 2017 Read More »

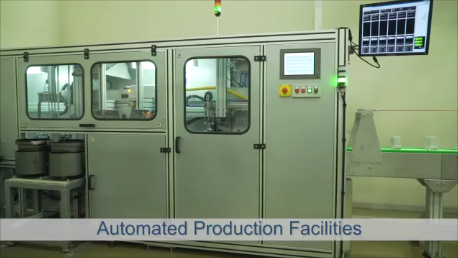

This design featured a little while ago. Scroll down a little to read the original post. This video snippet is thanks to my client: S4 Automation
Electric Control Module (ECM) processing plant – video extract Read More »
